ICE RAPTOR CARBON BMX frame kit sold with axle + IRC chain tensioners ''Ice Roller Coaster'' and rear through axle in Ã15mm.

This frame is made using advanced technological processes from the highest quality carbon fibers of the Toray T700 + T800 type (T800 used for reinforcement). Few brands use the T800.

The frame is molded in 2 parts which are then glued during manufacture.The glue used is a high quality American glue named 9432 Specific geometry:ARCH type rear seatstays designed to accommodate a Flatmount type brake caliper, which makes the whole thing very discreet and refined.

This system allows the mounting of a brake disc with a diameter of 140mm.Frame dropouts designed for mounting a 15mm through axle (15mm axle delivered with the frame kit) or 10mm (adapter cups delivered with).

Technology and standards used: - Our RAPTOR frame comes with our revolutionary IRC (ICE Roller Coaster / integrated spring chain tension) system.

This system will eliminate any hard points in the chain, and above all will allow you to keep a precise rear wheel setback adjustment, in the sense that you will no longer have to disassemble the rear wheel to remove your chain.

All our frames are subjected to a battery of laboratory tests, with requirements revised upwards compared to the usual data necessary for passing standards, to ensure that you have got your hands on a resistant product.

(Front / rear impact tests, fatigue / torsion tests).

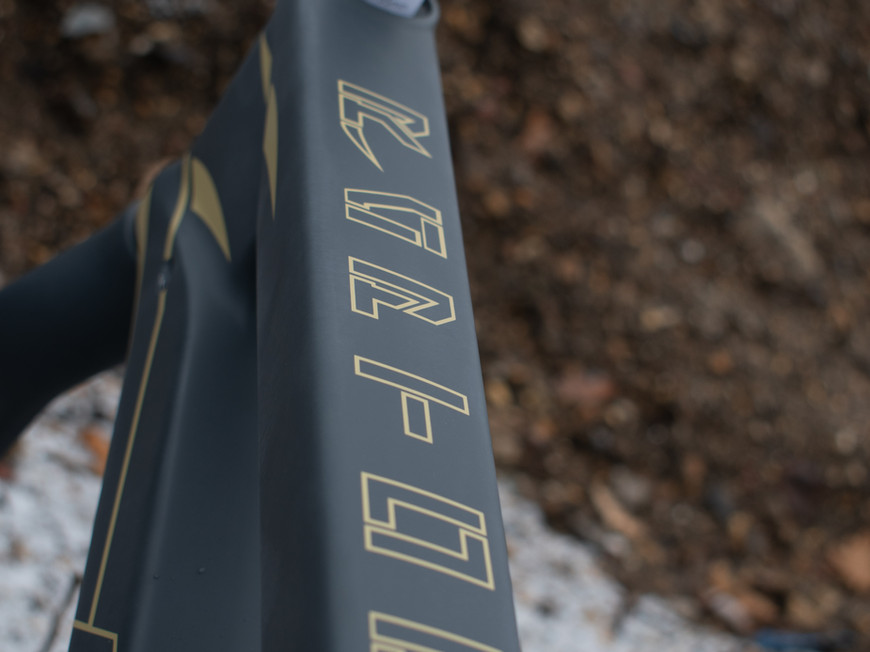

• BMX ICE RAPTOR CARBON Frame
• Frame kit sold with a pair of IRC TC chain tensioners and a Ø15mm rear thru axle.
• Flatmount brake caliper
• disc Ø 140mm diameter
• Ø 15mm thru axle (Ø 15mm axle supplied with the frame kit) or 10mm (adapter cups supplied with it)
• Internal cable routing
• Integrated standard tapered head tube
• External BSA type bottom bracket
• 15 mm of real adjustments for the rear wheel / Fine adjustment of the rear wheel:
  Adjustment from 365 to 380 mm in size PRO
  Adjustment from 375 to 390 mm in size PRO XL
  Adjustment from 385 to 400 mm in sizes PRO XXL and PRO 3XXL
• Seat post Ø 27.2 mm
• Seat clamp Ø 31.8 mm

• Save precious time when changing a crown between 2 rounds! Everything is easy to assemble.
• Internal cable passage with carbon ''Pipeline'' type guidance for fluid guidance and appreciable ease of assembly.
• Entrance to the sheath at the head tube, and exit at the internal level of the left seatstay for a direct connection to your brake caliper.
• Tapered head tube with integrated standard (SHIS: IS42/28.6-IS52/40)(Also accepts mounting of a 1'1/8 steerer fork with a reducing fork cone)
• External bottom bracket type BSA 24 mm (Shinano Hollowtech II)Robustness proven in the laboratory
